Triad Magnetics is a renowned manufacturer of high-quality transformers and inductors, offering both standard and custom solutions for a wide range of applications. With over 80 years of experience, the company has established itself as a leader in the industry, providing innovative and reliable products to customers worldwide.
Their products are widely recognized for their quality, reliability, and innovation. Triad's range of magnetic components is used across various industries, including power supplies, audio, medical devices, industrial controls, and renewable energy systems.

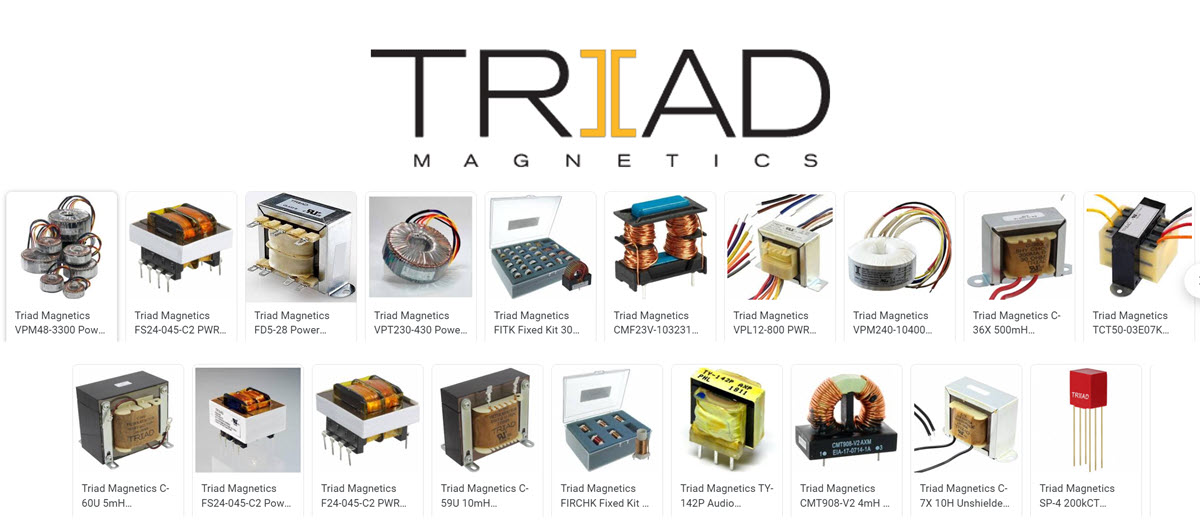

The Magnificence of Triad Magnetics Transformers and Inductors
Triad Magnetics' transformers and inductors are renowned for their exceptional performance, durability, and versatility. The company's extensive product line includes:
Custom Power Transformers
Triad Magnetics specializes in designing and manufacturing custom power transformers tailored to meet specific customer requirements.
Power transformers are the workhorses of electrical and electronics applications. These passive electromagnetic devices transfer electrical energy — typically by inductive coupling — from one circuit to another while converting power-level voltages from one level or phase of configuration to another to boost or lessen voltage to suit a specific application.
These transformers can be designed with a wide range of specifications, including power ratings from 0.010VA to 30 kVA, frequency ratings from 20 Hz to 1 MHz, and UL insulation system ratings of 130–220°C. They are available in various core materials, shapes, and configurations, ensuring optimal performance for diverse applications.
Custom Inductors and Chokes
Triad Magnetics offers comprehensive design expertise for custom inductors, ranging from high-frequency switch-mode inductors to large three-phase inductors. Their engineers work closely with customers to understand individual mechanical and electrical requirements, ensuring the delivery of tailored solutions.
High-Frequency Magnetics
The company's expertise extends to high-frequency magnetic components, including flyback transformers, gate/base drive transformers, high-frequency inductors, push-pull buck transformers, RF power transformers, and single-ended buck transformers. These products are designed to meet the demanding requirements of high-frequency applications.
Automotive and Electric Vehicle (EV) Components
With an IATF 16949:2016 certified factory, Triad Magnetics ensures the highest quality and performance standards for its automotive products, including transformers and inductors used in electric vehicles and charging stations. Their components play a crucial role in power conversion, voltage regulation, and thermal management in EVs.
Applications
- Power Supplies: Transformers and inductors are crucial in converting and regulating power in both consumer and industrial power supplies.
- Audio Equipment: Audio transformers ensure high-quality sound transmission with minimal distortion.
- Medical Devices: Reliable transformers and inductors that meet stringent medical standards.
- Renewable Energy: Components that support the efficiency and reliability of renewable energy systems such as solar inverters and wind turbines.
- Industrial Controls: Inductors and transformers used in controlling and monitoring industrial machinery and systems.
Transformers
Transformers are crucial in electrical systems for voltage conversion, isolation, and power distribution. Triad Magnetics offers a comprehensive range of transformers, each designed to meet specific application needs.
Key Features and Types
- Power Transformers: Used for stepping up or stepping down voltage levels in power supplies.
- High Efficiency: Triad’s power transformers are designed for maximum efficiency, reducing energy loss and operational costs.
- Custom Designs: They offer custom transformer designs tailored to specific requirements.
- Audio Transformers: Essential in audio applications for impedance matching, signal isolation, and noise reduction.
- Low Distortion: Ensures high fidelity audio transmission.
- Wide Frequency Range: Suitable for various audio applications, from recording studios to broadcast equipment.
- Current Sense Transformers: Used to monitor current flow in power supplies and other systems.
- High Accuracy: Provides precise current measurement.
- Compact Design: Easy to integrate into existing systems.
- Medical Transformers: Designed to meet stringent safety and performance standards required in medical equipment.
- Safety Compliant: Meets medical safety standards such as UL60601-1.
- Reliable Performance: Ensures consistent operation in critical applications.
Inductors
Inductors are used in various electronic circuits for filtering, energy storage, and signal processing. Triad Magnetics offers a wide range of inductors to meet diverse application needs.
Key Features and Types
- Chokes: Inductors designed to block higher-frequency AC signals while allowing DC or lower-frequency signals to pass.
- High Current Handling: Suitable for power supply applications.
- Minimal Core Loss: Ensures efficiency and longevity.
- Toroidal Inductors: Known for their efficiency and compact design.
- Low Electromagnetic Interference (EMI): The toroidal shape reduces EMI.
- High Saturation Current: Ideal for applications requiring high current.
- Power Inductors: Used in power supply circuits for energy storage and filtering.
- High Energy Storage: Capable of storing significant amounts of energy.
- Low DCR (DC Resistance): Reduces energy loss and improves efficiency.
- RF Inductors: Designed for radio frequency applications.
- High Q Factor: Ensures minimal signal loss.
- Broad Frequency Range: Suitable for a variety of RF applications.
Innovation and Quality
Triad Magnetics is committed to innovation and quality, ensuring their products meet the highest standards. Their engineering team continuously develops new technologies and designs to keep up with the evolving demands of the industry. Certifications, Registrations & Compliance >
- ISO 9001 Certification: Triad’s manufacturing facilities are ISO 9001 certified, ensuring consistent quality and performance.
- Research and Development: Ongoing R&D efforts to innovate and improve product offerings.
- Customer Support: Excellent customer service and technical support to assist with product selection and application.
Unparalleled Quality and Innovation
Triad Magnetics takes pride in its commitment to quality, reliability, and innovation. The company's design process promotes creativity, with engineers managing projects from initial concept through production4. Their rigorous quality control systems, including in-process inspection, pre-ship audits, and failure analysis, have allowed many customers to eliminate incoming inspection processes.
With global manufacturing and distribution facilities in the United States, Philippines, and China, Triad Magnetics offers just-in-time delivery of its products, ensuring efficient supply chain management for its customers.
In summary, Triad Magnetics' transformers and inductors are magnificent examples of engineering excellence, combining cutting-edge technology, superior quality, and unwavering commitment to customer satisfaction. Whether you require standard or custom solutions, Triad Magnetics is a trusted partner for all your magnetic component needs.
